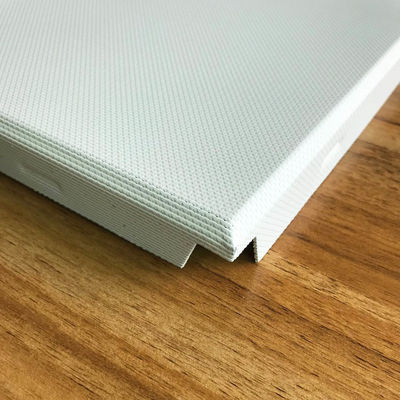

Ultra Micro Perforated Honeycomb Ceiling Panel 20mm Thickness
Product Details:
| Place of Origin: | Guagnzhou China |
| Brand Name: | Guangzhou SEASON |
| Certification: | ISO9001,ISO14001,SGS,etc. |
| Model Number: | Ultra micro perforation panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000sqm |
|---|---|
| Price: | US$7~14 per sqm |
| Packaging Details: | Neutral carton package or wooden pallet package |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000sqm per month |
|
Detail Information |
|||
| Material: | Aluminum Alloy | Size: | 600x1200mm |
|---|---|---|---|
| Thickness: | 20mm | Surface: | Microperforation |
| Acoustic Ratings: | 0.8 | Color: | White Or Wooden Grain |
| High Light: | Ultra Micro Perforated Honeycomb Ceiling Panel,Honeycomb Ceiling Panel 20mm,Micro Perforated Honeycomb Wall Panel |
||
Product Description
1, define,
The geometric surface of the microporous surface increases the viscosity boundary layer formed by acoustic molecules on the microporous surface and the axial velocity difference of air particles in the microporous surface to produce a penetrating loss effect, so as to obtain a good sound-absorbing effect.
2, the characteristics of
(1) Ultramicro pore sound-absorbing aluminum plate belongs to the characteristics of absorbing full frequency, and uses the control of the thickness of the air layer behind it to reduce the low, middle and high frequency sound energy. Sound absorption rate is very strong, up to 0.7-0.9.
(2) The aperture is only 0.04mm, and the micropores can hardly be seen from the normal distance.
The back does not need to be covered with any sound-absorbing material.
④ The surface is treated with special fluorocarbon baking paint, powder baking paint or anode, but it does not block micropores.
⑤ With light weight, non-toxic, fire prevention, waterproof, salt resistance, dustproof, high sound-absorbing rate, high pollution resistance, long service life, high electromagnetic shielding, color change and easy to cut performance, and cutting will not cause environmental pollution of the efficient sound-absorbing material.
| Technical Specification | |||
|
Product Name:
|
Ultra micro perforated panel
|
Surface Finish:
|
PVDF coating
|
|
Brand:
|
GZ SEASON
|
Color:
|
White color or wooden grain
|
|
Origin:
|
Guangzhou China
|
Application:
|
Metro station, Library,etc.
|
|
Model:
|
Ultra microperforated panel
|
Function:
|
Sound absorption, Fireproof, Waterproof, Light weight,
|
|
Material:
|
Aluminum alloy
|
Warranty:
|
5-10 years,depends on the requested.
|
|
Size(mm):
|
600x1800mm
|
Customized (Yes or No):
|
Yes
|
| *Customized size is available as per requested,please contact for more details. | |||
Project Gallery:
Why choose us ?
Q: Are you trading company or manufacturer ?
A: We are factory in Guangzhou,and you're always warmly welcomed to visit our factory.
Q: How long is your delivery time ?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.but for customized sample,you need to pay for sample fee.
Q:Can you provide project design ?
A:Of course,and our experienced designer can well understand your requirements and offer you suitable advice.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance,70% T/T balance before loading container. If you have another question, pls feel free to contact us.
